The Most Common Types of Touch Screen MonitorTechnology

With the rapid advancement of technology, LCD screen touch technology has become nearly ubiquitous—whether in the smartphone in your hand, the tablet at home,

or digital signage on the street, touchscreens provide users with convenient operation and rich interactive experiences. As technology continues to evolve,

the Tuchscreen is no longer merely an input device; it now enhances user interaction with greater precision and intelligence, making operations smoother and more engaging.

Today, touch screen for monitor solutions are widely used in offices, retail, and public spaces, offering efficient and intuitive control experiences. This article will provide a detailed overview of the main types of touch screens, their working principles, and their applications in digital signage, helping you gain a comprehensive understanding of LCD touch

screen technology.

Touch Screen Principles

The basic principle of a touch screen is to detect the user's touch actions and convert physical signals into electrical signals, enabling information output and

human-computer interaction. Touch technology greatly enhances operational convenience, partially replacing traditional mouse functions and making daily life

and work more efficient.

With technological advancements, touch screens have evolved from detecting only single-point touches to supporting multi-touch capabilities. Most digital signage on

the market now supports ten-point touch, while VETO's interactive whiteboard can achieve up to 20-point touch. This allows users to perform complex operations

simultaneously with multiple fingers, such as drawing or executing multi-gesture commands, significantly enriching the interactive experience.

Main Types of Touch Screen Monitor Technology

The most common touch screen monitor technologies on the market today include resistive touch screens, capacitive touch screens, and infrared touch screens.

Each technology has its own unique advantages and characteristics, making it suitable for different applications and use cases.

Capacitive Touch Screens (PCAP)

Capacitive touch screens, abbreviated as PCAP, were first introduced by Eric Arthur Johnson in Electronics Letters. Today, they have become the most common capacitive touch technology—virtually all the smartphones and tablets you use daily are equipped with capacitive touch

screens.Capacitive touch panels are mainly divided into Surface Capacitive and Projected Capacitive (PCT) types, with largely similar structures.

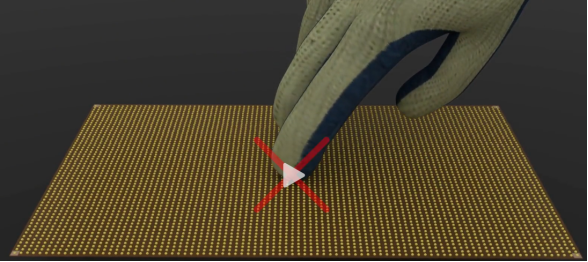

A Surface Capacitive LCD screen is a type of touch screen monitor hat consists of small sensors at the four corners and a thin conductive film covering the screen surface.

Its working principle relies on the human body acting as a capacitor: when a finger touches the Tuchscreen, it forms an electrical circuit, causing a voltage change on the screen and triggering touch input.

In simple terms, any object carrying an electric charge can slightly touch the touch screen monitor and alter the current to register a touch. However, if you wear gloves,

the touch input will not work because gloves are non-conductive. Due to this limitation, surface capacitive touchscreens are rarely used in practical applications.

Projected Capacitive Touch Screens (PCT)：

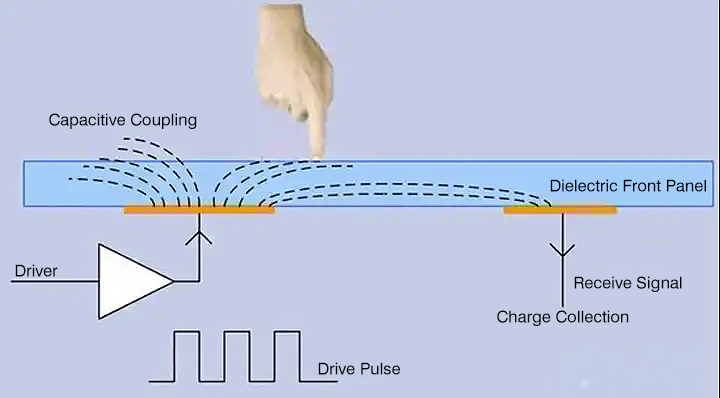

Projected capacitive touch screen monitor are structurally very similar to surface capacitive screens, but they use specialized sensor chips to form a dense electrode grid.

The horizontal and vertical electrodes of the screen intersect to create capacitance. When a finger touches the screen, the human body's electric field forms a coupling

Tcapacitor with the screen surface, changing the capacitance at the touch point.

Unlike surface capacitive screens, projected capacitive screens are not affected by wearing gloves and support multi-touch functionality—allowing users to operate

the screen with two or more fingers simultaneously. As a result, the vast majority of touch-enabled displays on the market today use projected capacitive technology.

The common principle between surface and projected capacitive screens is that any charged object, such as a finger, transfers a small amount of charge to the screen, forming a complete local circuit and enabling touch input.

Advantages and Disadvantages of Capacitive Touch Screens

● Fast Response and High Sensitivity: Capacitive touch screens respond quickly and support multi-touch operations, making them suitable

for complex interactive applications.

● Stylish Appearance and Easy to Clean: With a flat and sleek design, capacitive screens are visually appealing and easy to clean. They often feature dust- and

water-resistant properties and can be made thinner and lighter.

● Affected by Liquids: Due to their high sensitivity, capacitive screens may fail to accurately detect touch points when water or other liquids are present

on the surface, as liquids are conductive.

● Requires Conductive Touch: Capacitive screens rely on the finger forming a coupling capacitance with the screen. Therefore, the touch object must

be conductive. Using gloves may result in unresponsive touch input.

Infrared Touch Screen Monitor

Infrared touch screens monitor operate by installing LED infrared emitters and receivers along the edges of the screen, forming a crisscrossing transparent infrared

grid. When a finger touches the screen, the infrared beams in the contact area are interrupted, allowing the receivers to accurately detect the touch location and

enable touch functionality.

In digital signage applications, infrared touch screens are widely used due to their relatively low cost and fast response speed A notable feature of infrared touch

screens is that the screen edges often include a recessed frame to house and protect the infrared emitters and receiveThis design also safeguards the optical path,

prevents dust interference, and improves touch detection accuracy.

Advantages and Disadvantages of Infrared Touch Screens

● Supports Multiple Touch Tools: Infrared touch screens detect touch by interrupting infrared beams. Unlike capacitive screens, they can be operated even while

wearing gloves. Any medium that can block the infrared beams can trigger touch input.

● Cost-Effective and Suitable for Large Screens

Infrared touch technology is relatively simple and does not require expensive materials like ITO conductive glass/film used in capacitive screens.

Only standard glass and an infrared frame are needed. This makes assembly costs lower and ideal for large digital signage over 32 inches, such as

interactive whiteboards and floor-standing advertising displays.

● Thicker Frame: Infrared touch screens usually require a recessed frame along the edges to house the LED emitters and receivers, resulting

in a relatively wider screen bezel.

● Affected by Environmental Factors: Since infrared touch relies solely on blocking the infrared beams, the screen surface must be kept clean. Dust,

smudges, or grease can interfere with the optical path, reducing touch sensitivity.

Resistive Touch Screens

Resistive touch screen monitor is one of the earliest touch technologies and is now used less frequently. It was commonly found in older mobile phones and ATMs.

When pressing the screen, slight deformation on the surface can often be observed.

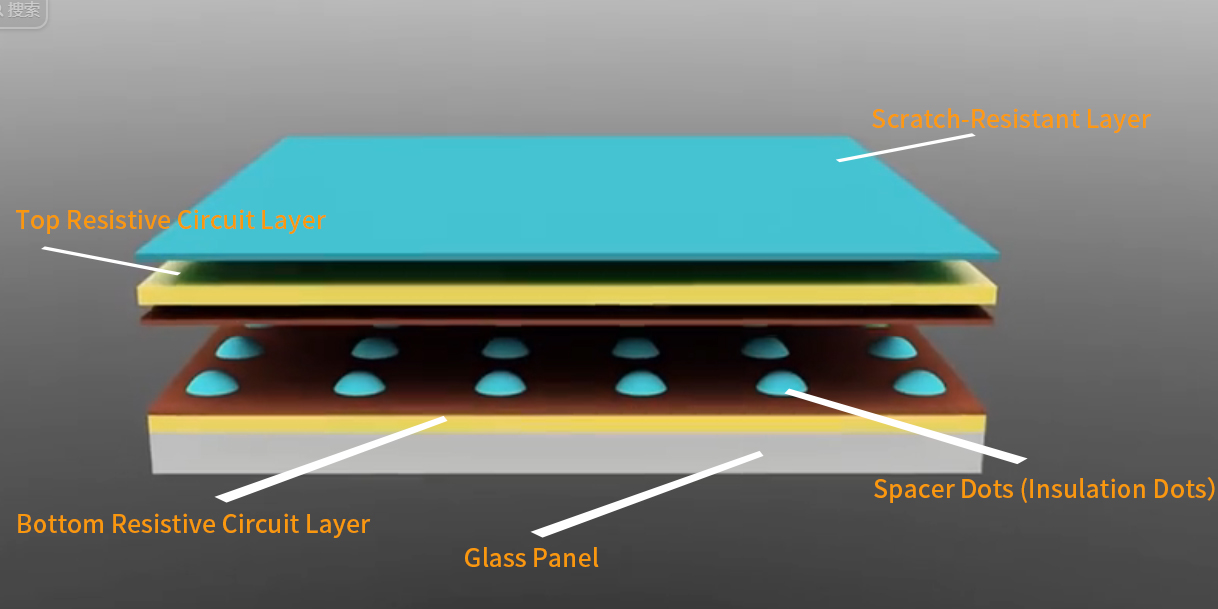

A resistive touch screen is mainly composed of two resistive layers, a middle insulating layer, and a scratch-resistant top layer. The insulating layer separatesthe two conductive layers. When the screen is pressed, the two layers make contact, causing a change in current. The device detects this change to determine the

touch location and register input.

● Low Power Consumption: Resistive touch screens require minimal current, resulting in lower overall power consumption.

● Multiple Touch Tools: Can be operated with fingers, a stylus, or other non-conductive objects.

● Limited Display Clarity: Due to its multi-layer structure, the screen' s transparency and clarity may decrease under strong lighting conditions.

● Single-Point Touch Only: Resistive screens can only detect one touch point at a time. If two fingers touch the screen simultaneously,

only the first touch is registered. Multi-touch gestures like pinch-to-zoom are not supported.

Applications of Touch Screen monitor in Digital Signage

Touch screens are one of the most common and intuitive interaction methods in digital signage. They can be found in floor-standing advertising displays,

wall-mounted digital signs‍,   and interactive touch screen . Touch technology enhances the interactivity and user experience of digital signage, making

information delivery more direct and efficient.Whether in retail, transportation, exhibitions, or educational training, touch-enabled digital signage is increasingly

becoming a vital tool for modern information display.

111Conclusion

As an essential component of modern technology, touch screen technology has profoundly transformed the way we live and work. By understanding its working

principles, main types, and applications, we can better utilize this technology. If you are planning to purchase LCD touch displays for your business, don't hesitate

to contact us‍. We will provide you with the highest quality service and the most suitable solutions.

FAQ

1, Q:How many different types of touch screen are there?

A: The common types of touch screens on the market include:

• Resistive Touch Screen: Works by detecting pressure between two conductive layers. It supports stylus or finger touch.

• Capacitive Touch Screen: Uses the conductive properties of the human body to sense touch. It is highly sensitive and commonly used in smartphones and tablets

• Infrared Touch Screen: Detects finger position through infrared light. It is durable and supports multi-touch.

• Nano Touch Screen: Uses nano-sensing technology for higher accuracy and faster response. It is waterproof, dustproof, and ideal for high-end displays and smart devices.

2, Q: What is a touch screen monitor definition?

A: A touch screen panel for lcd monitor is a display device that can be operated directly by touching its surface with your hand (or a stylus), without the need for external tools like

a keyboard or mouse,making it particularly intuitive to use. Its core function is to "sense" touch-using technologies like capacitance and resistance to capture the contact signals

from your finger or stylus and convert them into commands that the device can recognize.For example, when you use your phone to tap an icon, swipe to turn a page,

or select food at a self-service kiosk, you're interacting with a touchscreen.These devices are commonly found on everyday phones, tablets,

kiosks at shopping malls, and electronic whiteboards in classrooms.

3, Q: How touch screens work.

To make operation easier, people use touch panel display instead of a mouse or keyboard. When you touch the front of the display with your finger or

another object, the systemdetects the touched icon or menu and selects the corresponding input. A touch screen and display mainly consists of two parts:

1. Touch sensing component – placed in front of the display, it detects the user's touch position and sends the signal to the controller.

2. Touch screen controller – receives the signal, converts it into touch coordinates, and sends them to the CPU. It also receives commands

   from the CPU and executes them, enabling smooth interaction between the user and the device.

4, Q: What are the common uses of touch screens ?

Touch screens are widely used in both daily life and professional settings.For personal use, smartphones, tablets, and touch laptops allow users to tap or swipe with ease.

In public spaces, ATMs, self-service kiosks, and exhibition navigation screens provide fast, convenient service.
In education and offices, interactive whiteboards and meeting touch displays make teaching and collaboration more efficient.
At home and in vehicles, smart control panels and car infotainment screens enable intuitive, intelligent device control.
The key advantage of touch screen technology is direct, efficient interaction—no extra tools needed.
