What Is an Infrared Touch Screen?

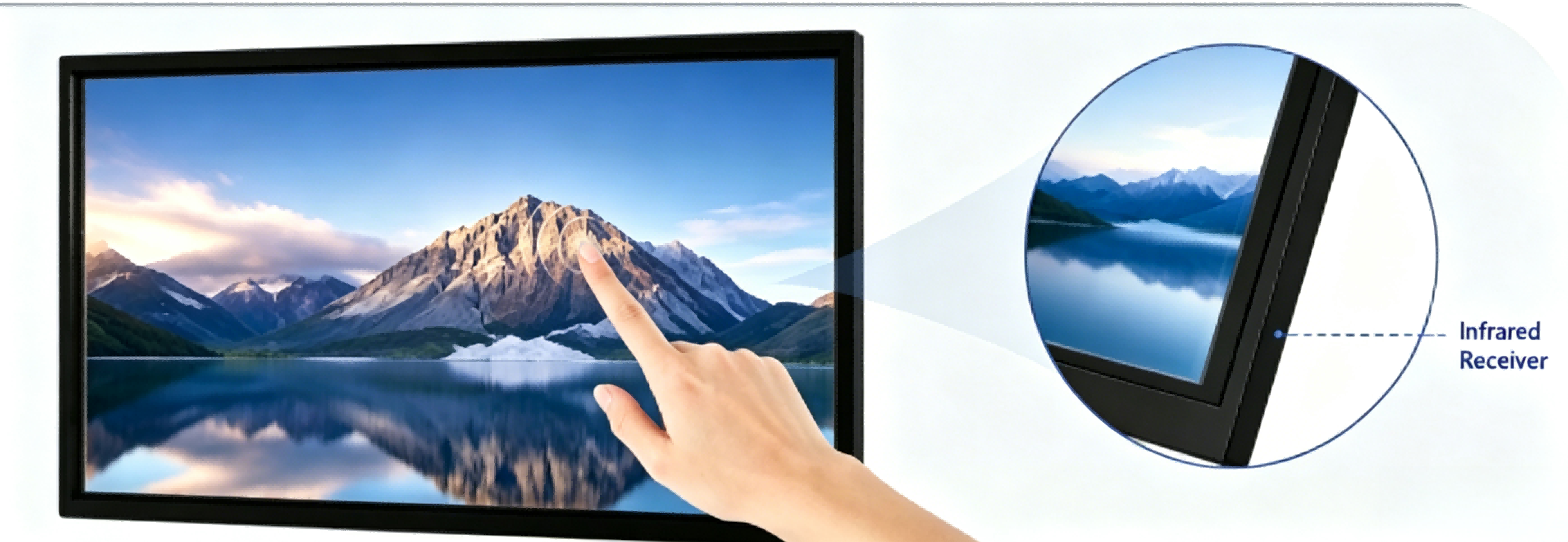

An infrared touchscreen features a ring of infrared emitters and receivers embedded around the edges of the screen, creating an invisible infrared screen
grid on the surface. When you touch thedisplay with your finger or another object, it effectively “breaks' certain lines in the grid.The device can then
precisely determine the location of the break, thereby enabling high-performance touch functionality.
How Does an IR Touch Screen Monitor Work?
The working principle of an infrared touch screen monitor is based on detecting interruptions in light beams to determine the touch position. Unlike capacitive models, an ir screen does not require a sensing layer on the glass surface. Instead, it operates through ir technology utilizing emitters and receivers positioned around the frame. Below is a detailed look at the process.

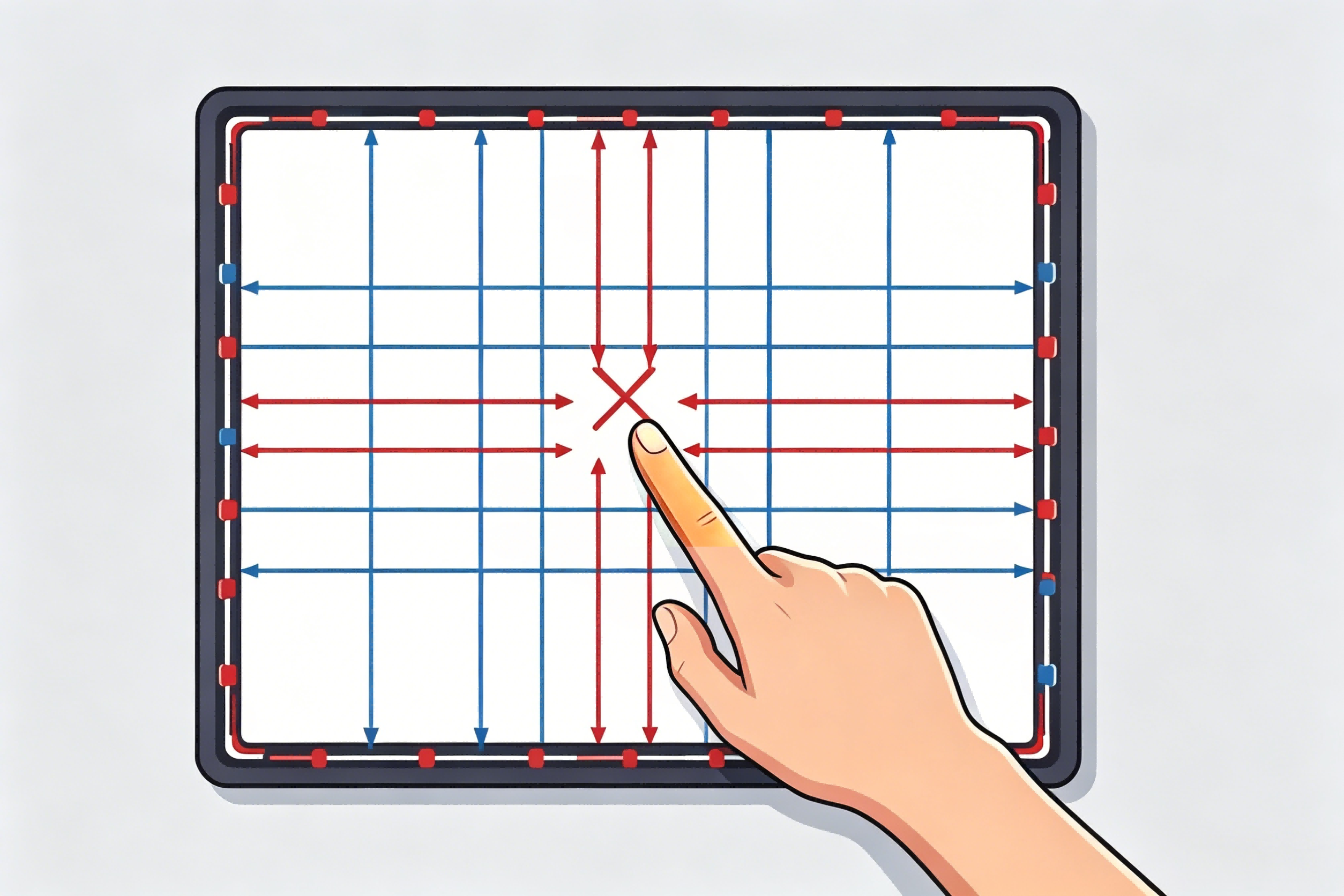

Grid Distribution: A large number of light-emitting diodes are embedded around the ir frame touch screen.
These components are arranged along the X-axis and Y-axis, forming the foundation of touch detection.
Light Beam Interruption: When your finger or stylus touches the surface, part of the invisible beams will be blocked. Because this ir technology does not rely on the human body's electrical current, it can still work normally even when wearing gloves.
Precise Touch Point Detection: After the sensors detect the interruption, the system immediately calculates the X and Y coordinates to accurately determine the touch point.
The Advantages of Infrared Touch Screen
Long service life and durability.
Infrared touchscreens typically use tempered anti-glare glass as the surface material, offering excellent scratch and impact resistance.
Additionally, outdoor infrared displays support IP65 or IP66-rated water and dust resistance, making them ideal for commercial applications.
Responsive touch with multi-touch capability.
Infrared touchscreens do not rely on human static electricity, allowing users to operate them directly with their fingers, a stylus, or even while wearing
gloves, offering greater flexibility.
Additionally, these devices typically support 10- or 20-point multi-touch,meeting the needs of simultaneous operation and interaction by multiple users.
Affordable.
They are relatively inexpensive, and maintenance is more convenient. Since infrared touchscreens primarily rely on circuit boards and infrared sensing components, issues such as aging wiring, localized corrosion, or component failure can usually be addressed through manual repair or replacement, keeping maintenance costs relatively low.
However, the overall stability of most infrared touch devices is now highly mature. Internal components typically feature corrosion resistance and
interference immunity, ensuring long-term, stable operation under normal usage conditions.
Infrared Touch Screen vs Capacitive Touch Screen
The key difference between ir technology touch and capacitive touch lies in their sensing principles and intended applications. Capacitive touch relies on the static electricity from the human body to detect touch; it offers strong water and dust resistance but has more stringent requirements for the application environment and is typically used indoors. The larger the screen size, the greater the price fluctuations.
Infrared touch determines the touch point by detecting where an infrared beam is blocked; it can be operated normally even while wearing gloves, and large-size infrared touchscreens offer better value for money.
(Comparison) | Capacitive touch | Infrared Touch |
Core Principles | Using the body's static electricity | Blocking infrared light to detect touch locations |
Touch methods | Non-conductive objects cannot be touched | Any ordinary object will do |
Multi-touch | 10/ 20point | 10/20point |
Cost | Larger sizes are more expensive | Cost-effective for large-size displays |
Application | phones, tablets, computers, and small-to-medium-sized digital signage devices | Digital signage, advertising displays, self-service ordering kiosks, |
Maintenance complexity | High | low |
The Applications of Infrared Touch Screens
Infrared touchscreens are currently widely used in retail, food service, healthcare, and other sectors. Common application scenarios are as follows.
Food Service Industry

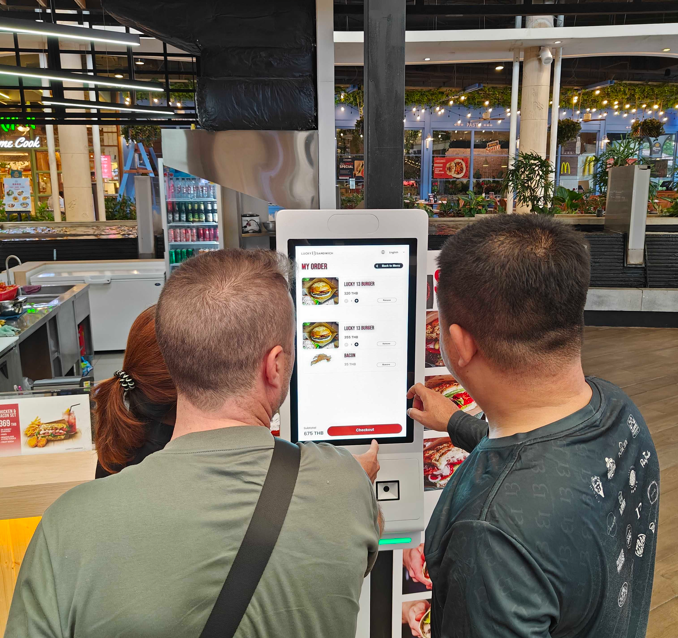

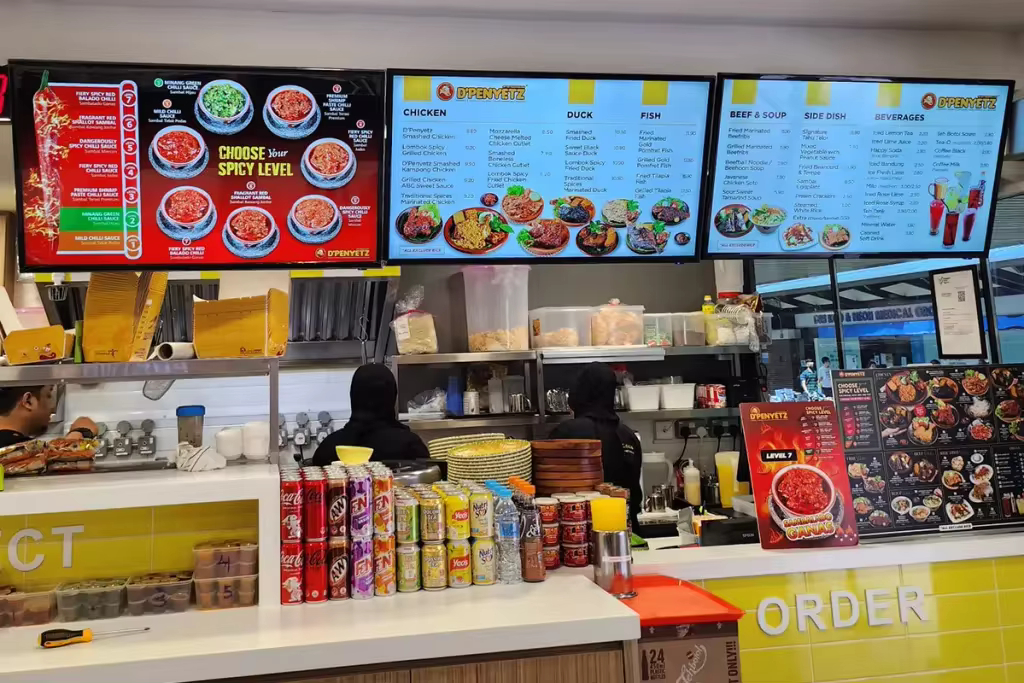

Common applications in the food service industry include self-service ordering kiosks and digital menu boards.
Customers can browse menus on their own and complete orders or payments. Restaurant digital menu boards are used to display promotional items and special offers, thereby enhancing the dining experience.
Public Services.
Infrared touchscreens are also used in self-service kiosks for healthcare, banking, and government services.
Common examples include hospital registration kiosks and banking transaction terminals. They are also very common in public transportation solution,
such as subway route guidance screens and public information kiosks.
Education
Education is one of the most typical application areas for infrared touchscreens, commonly found in school all-in-one teaching systems and interactive whiteboards. They support simultaneous operation by multiple users, enhancing interaction between students and teachers. This brings a vivid and engaging learning experience to the classroom.
Conclusion.
By 2026, the infrared touch screen will remain one of the key solutions in the commercial display industry, thanks to their durability, multi-touch
capabilities, and price advantages.
If you are still unsure which touch technology is best suited for your project, please feel free to contact VETO Digital Signage Displays. We can help you choose the right ir screen for your project.
