Is Installing Stretched Bar Displays Difficult?

As a veteran in the digital signage industry, I often get inquiries from customers asking: "Are these ultra-wide stretched bar displays a nightmare to install?"

Honestly, you can think of it like hanging a long scroll painting in your home. As long as you choose the right size and the proper bracket, the installation is actually incredibly simple and convenient.

I. Stretched bar lcd display Basic Installation

The "Preparation Phase"

Tool Kit: Impact drill, spirit level, screwdriver, and measuring tape.

Site Inspection: Confirm the wall's load-bearing capacity. While wooden partitions are fine for smaller units, a solid wall (concrete or brick)

is highly recommended for larger displays.

16.5/23’Bar screen size installation case

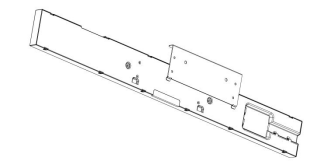

Product Picture after take out from package:

Step1: Use screw-driver to loose screws(M2) in the side and remove bracket from back of screen

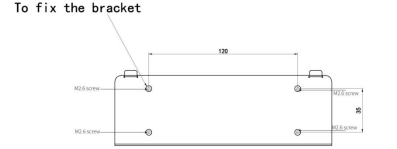

Step2: Fixed the bracket on wall/shelf

Use electric drill to fix M2.6 screws into the four round hole on the wall/shelf, Please make sure the bracket are tightly fixed.

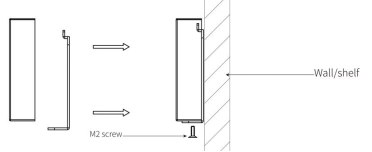

Step3: Fixed the screen in the bracket

Hang the screen to the wall’s bracket, use screwdriver to insert M2 screw to hole of upper plate of bracket, and same operation to insert M2 screw to hole of bottom plate of bracket, tighten the screws to make sure the screen is fixed properly with wall’s bracket.

The installation methods may vary depending on the product size. If you have any objections to the installation methods of other bar screen products, please feel free to contact us. We are happy to answer your questions.

Pro Tips: An Insider’s Guide to Avoiding Mistakes

Because of their unique aspect ratio, the physical structure of a stretched bar display is more delicate than a standard 16:9 screen. To ensure a smooth setup, always follow these professional guidelines:

Conclusion
In the end, is installing a bar screen difficult? Not at all, it just requires a bit of "patience."
