Understanding Pixel Pitch in LCD vs LED Video Walls

What is the Pixel Pitch ?

Pixel pitch, commonly referred to as spacing or dot pitch, is the distance between two light-emitting pixels. Typically, it denotes the   distance from one pixel to the next on an LED screen (usually measured in millimeters).   Generally, a smaller dot pitch indicates denser LED arrangement, more pixels per unit area, resulting in sharper images and stronger   visual impact. Conversely, a larger dot pitch results in lower video resolution. When viewed up close, the graininess becomes more   noticeable.

Pixel Pitch Characteristics of LCD Video Walls

The pixel pitch of LCD video walls is fixed and primarily determined by the panel’s resolution and size. Currently, panels from LG and BOE are among the most widely used in the market. Unlike LED displays, the most distinctive feature of LCD video walls lies in the   bezel: the narrower the bezel, the more seamless the image appears, resulting in a clearer and more unified display.

In indoor applications, LCD video walls offer significant advantages. On the one hand, indoor environments require lower brightness levels, which LCD panels can easily meet; on the other hand, they feature relatively low maintenance costs. For these reasons, LCD video wallshave become the mainstream solution for large display splicing in indoor settings.

However, LCD video walls also have limitations. In outdoor environments with strong ambient light, their contrast and detail performance are less effective, and direct sunlight can reduce image clarity. Prolonged sun exposure may also accelerate panel aging, making LCD   video walls unsuitable for outdoor use.

Pixel Pitch Calculation Method:

Example: For a 49-inch LCD video wall display panel with a resolution of 1080p × 1980p, the pixel pitch is typically around 3.5mm.

At present, VETO LCD video walls support bezel widths as narrow as 0.88mm, ensuring that even at close viewing distances

(as near as 1–2 meters),   the display still delivers clear and detailed visuals.If you have any requirements, feel free to contact us.

The reference table below will help you make the right choice for your application.

Pixel Pitch Characteristics of LED Video Walls

You can imagine an LED display as a giant “web of light” made up of thousands of tiny LEDs. Pixel pitch refers to the distance between   each of these points. The smaller the distance, the clearer and sharper the image appears, which is why pixel pitch is one of the most   important factors when choosing an LED display.

A smaller pixel pitch delivers higher resolution, smoother color transitions, and finer detail reproduction. It ensures a clear visual   experience from virtually any viewing angle, and even under direct sunlight, the image remains vivid and bright. For this reason, LED displays are widely adopted in outdoor applications.

In addition, the core specification of an LED video wall is pixel pitch. The most common pixel pitch options on the market include P0.9, P1.25, P2.5, P4, and P6.

For example:

   ●   P0.9 means the distance between two adjacent LED diodes is 0.9mm, with an optimal viewing distance of around 1 meter or less.

   ● P2.5 means the distance between two diodes is 2.5mm, with an optimal viewing distance of approximately 2.5 meters or more.

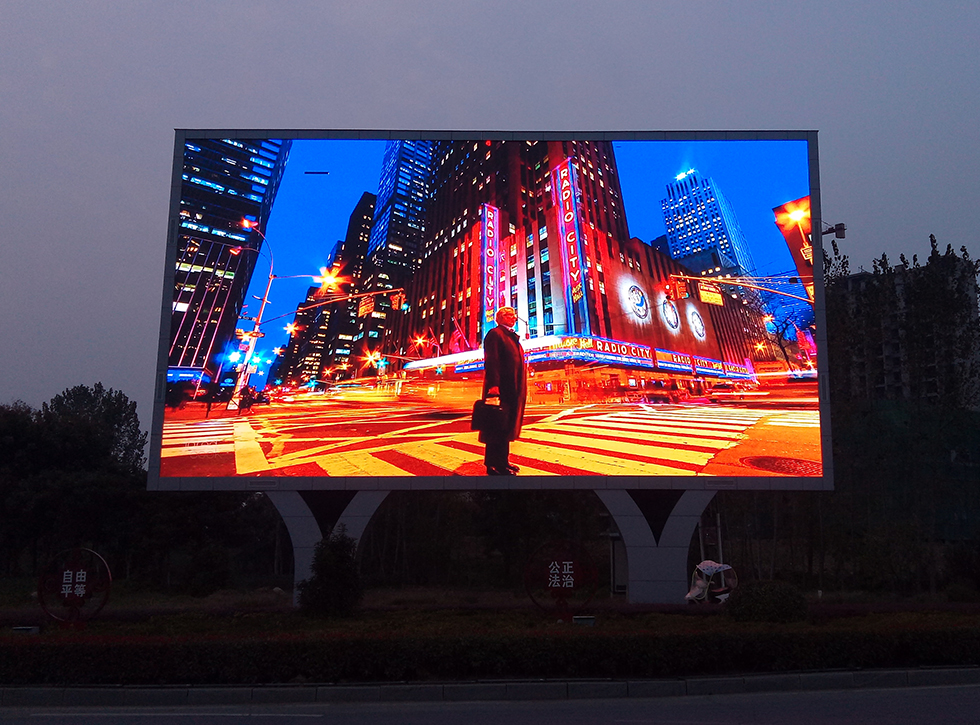

LED video walls are typically used in outdoor environments, such as large displays in shopping malls, stadiums, concerts,

and stage backdrops.

Why is pixel pitch important?

The significance of pixel pitch is most evident in LED video walls, as it directly impacts the viewing distance of the display. It also determines where the screen is best suited for application. A smaller pixel pitch results in smoother image edges and finer detail reproduction. This means viewers can get closer to the screen without noticing jagged edges. A common guideline is that smaller pixel pitches are better   suited for close viewing, while larger ones are more suitable for distant viewing.

However, it's important to note that smaller pixel pitches   aren't always the optimal choice. The decision largely depends on the product's   application scenario. For outdoor large screens with long viewing distances, higher pixel densities often become indistinguishable to the naked eye. Pursuing such high density would only add unnecessary costs.

LCD vs LED Video Walls: Pixel Pitch Comparison

LCD Video Wall vs LED Video Wall │ Which One is Right for Your Company?

Application

If your display will be used indoors, with a relatively short viewing distance, and you need to show sharp text or detailed images, an LCD   video wall is the more suitable choice.On the other hand, if you plan to install a display outdoors, where brightness, wide viewing angles,   and long-distance visibility are key, an LED video wall is a better fit.For example, LED video walls in outdoor shopping malls are typically designed for high brightness and eye-catching visual impact to attract viewers.

Cost and Maintenance

In most cases, the smaller the pixel pitch of an LED video wall, the higher the cost; for LCD video walls, narrower bezels typically lead to higher prices. The final choice should be based on your specific requirements. Generally, LED video walls also have   higher maintenance   costs. At the same specifications, LED video walls are usually more expensive than LCD video walls. If your budget is   limited, LCD video walls offer better cost-effectiveness.

We hope this information helps you choose the video wall that best suits your needs. If you have any questions or are interested in LCD   video walls, feel free to contact us.

Partnering with VETO LCD Digital Signage Manufacturer ensures that your investment delivers maximum value within a reasonable   budget.

FAQ

1，Q: Which is better for outdoor advertising, LCD or LED video walls?

A: For outdoor displays, LED video walls are generally the better choice. They offer high brightness, excellent visibility under direct sunlight,   and the ability to maintain sharp image quality at long distances. LCD video walls are more suitable for indoor applications and may   not perform well under outdoor conditions due to their lower brightness and potential for glare from sunlight.

2，Q: Can pixel pitch affect image clarity at close distances?

A: Yes, pixel pitch directly influences the clarity of the image when viewed up close. Smaller pixel pitches provide sharper images and

reduce,graininess, making them ideal for environments where viewers are close to the screen. Conversely, larger pixel pitches may causenoticeable graininess when viewed from a short distance.

3,   Q: What are the benefits of having a narrow bezel on an LCD video wall?

A: A narrow bezel on an LCD video wall ensures that the image appears more seamless, creating a unified display with fewer distractions between panels. This is especially important in environments where a large, continuous image is required, such as control rooms or exhibition spaces.

4，Q：How does pixel pitch impact the cost of LED video walls?

A：Smaller pixel pitches generally lead to higher costs for LED video walls. The cost increases with the reduction in pixel pitch because of the higher

resolutionand finer pixel density. If budget constraints are a concern, opting for a larger pixel pitch can help reduce costs while still providing good visual

quality for large outdoor or long-distance viewing applications.
